SM0100

Stainless Steel Mesh - 635mm

Measuring 635mm wide, each roll has 30m length of Stainless Steel Mesh.  This can be used to cover the Fibre Blanket to make insulation blankets.  Is also found on the Flexible Insulation Preheaters.

  • Dimensions of Roll: 190 H x 635 W x 190 D mm
  • Dimensions of Mesh: 30000 L x 635 W x 0.3 D mm
  • Weight of Roll: 9kg
  • Materials: AISI 304 Stainless Steel Mesh 635mm
1 pc
Insulation Products

Operating at temperatures up to 1260°C, our insulation materials are available fully assembled ready for use or as separate components for selfassembly.

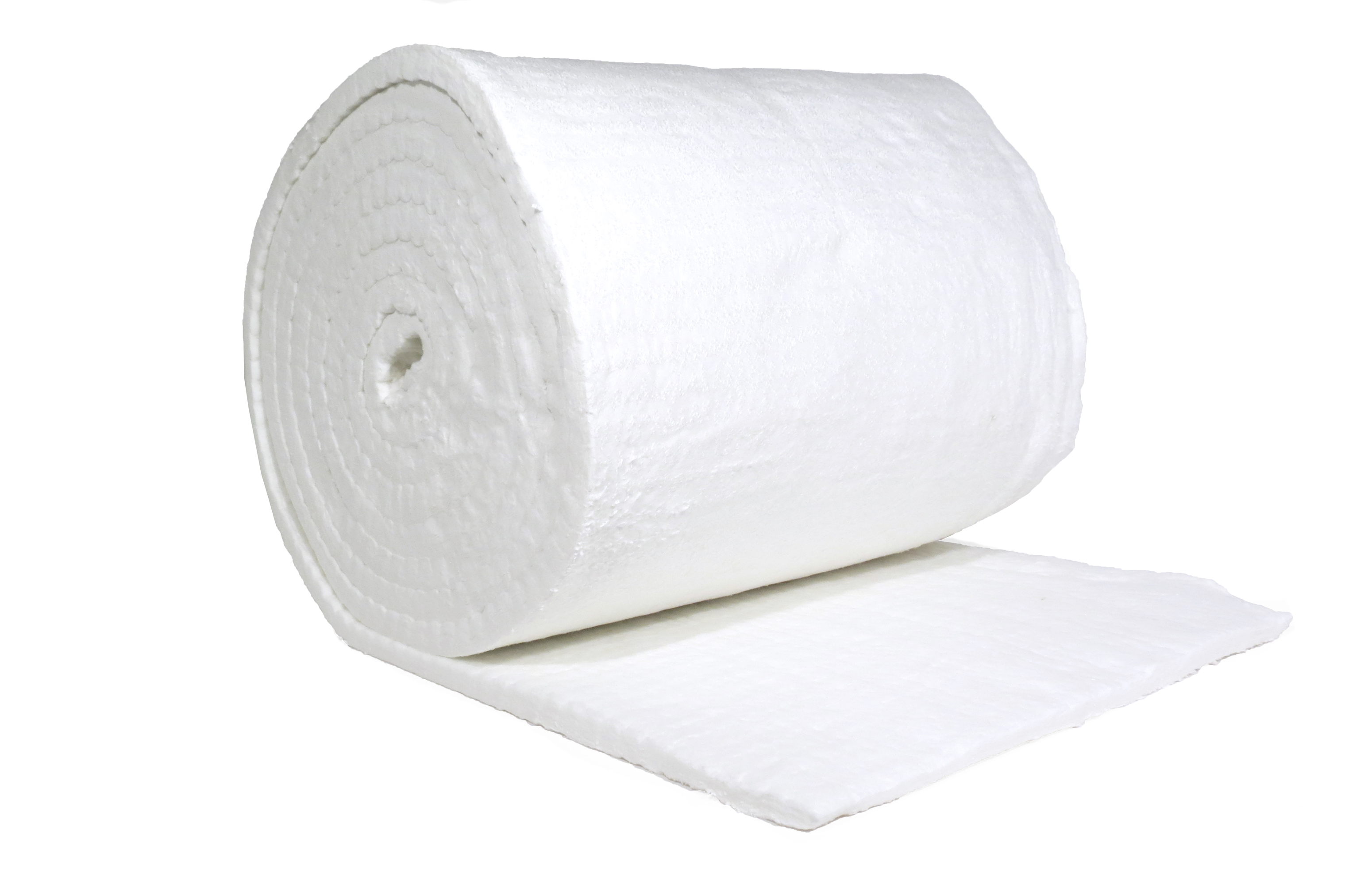

Available in 2 compositions, Superwool® and Ceramic Fibre Blankets are used as a general insulation material and is the main component used to make insulation blankets. Easy to cut and install, they come in 128kg/m3 and 96kg/m3 densities. Other densitites are available upon request.

Stainless Steel Mesh is used to prolong the life of the Insulation Blankets. Supplied in 2 widths (635mm and 300mm), each roll has 30m or 50m of length respectively and can be cut to size as required.

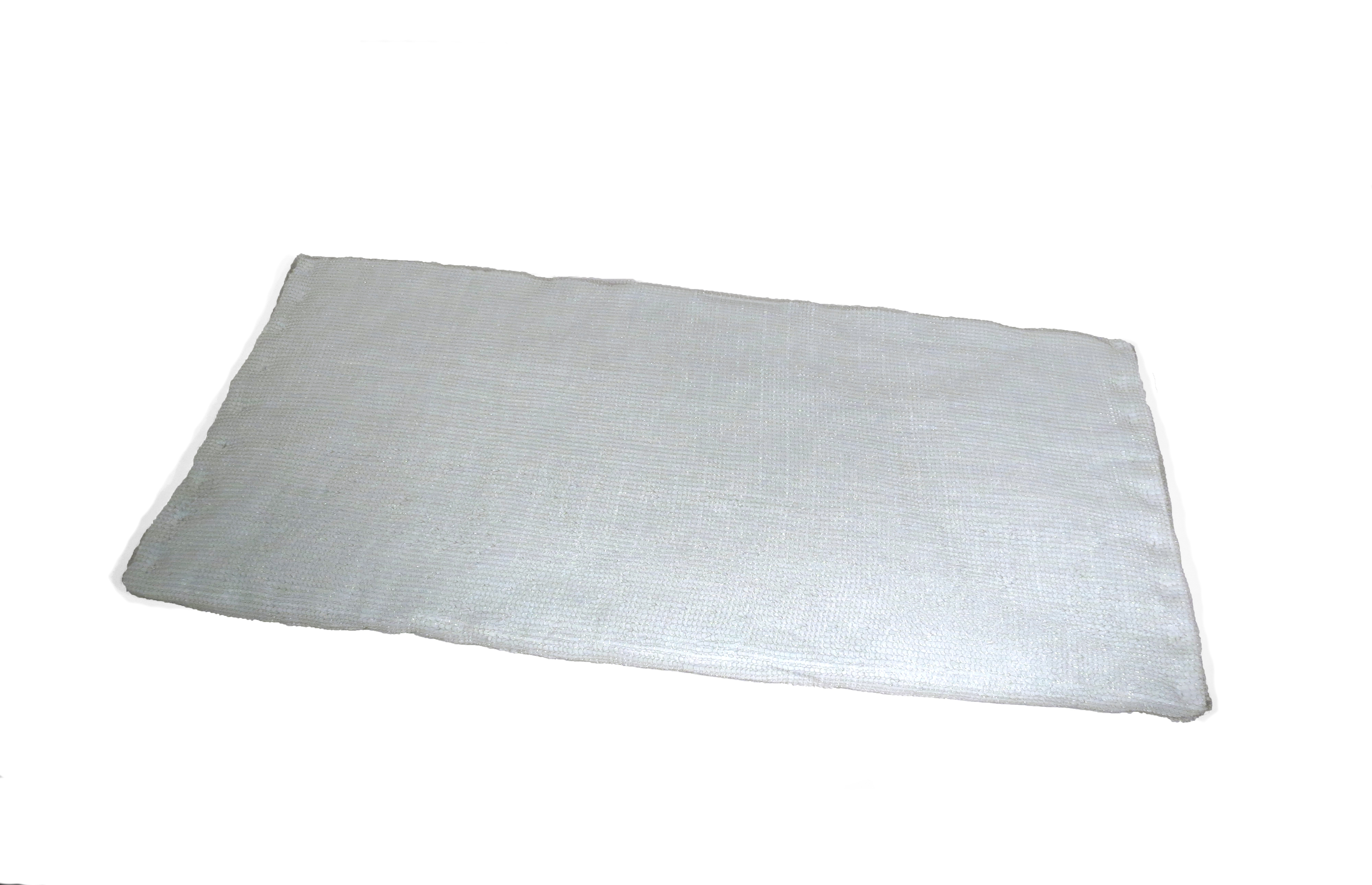

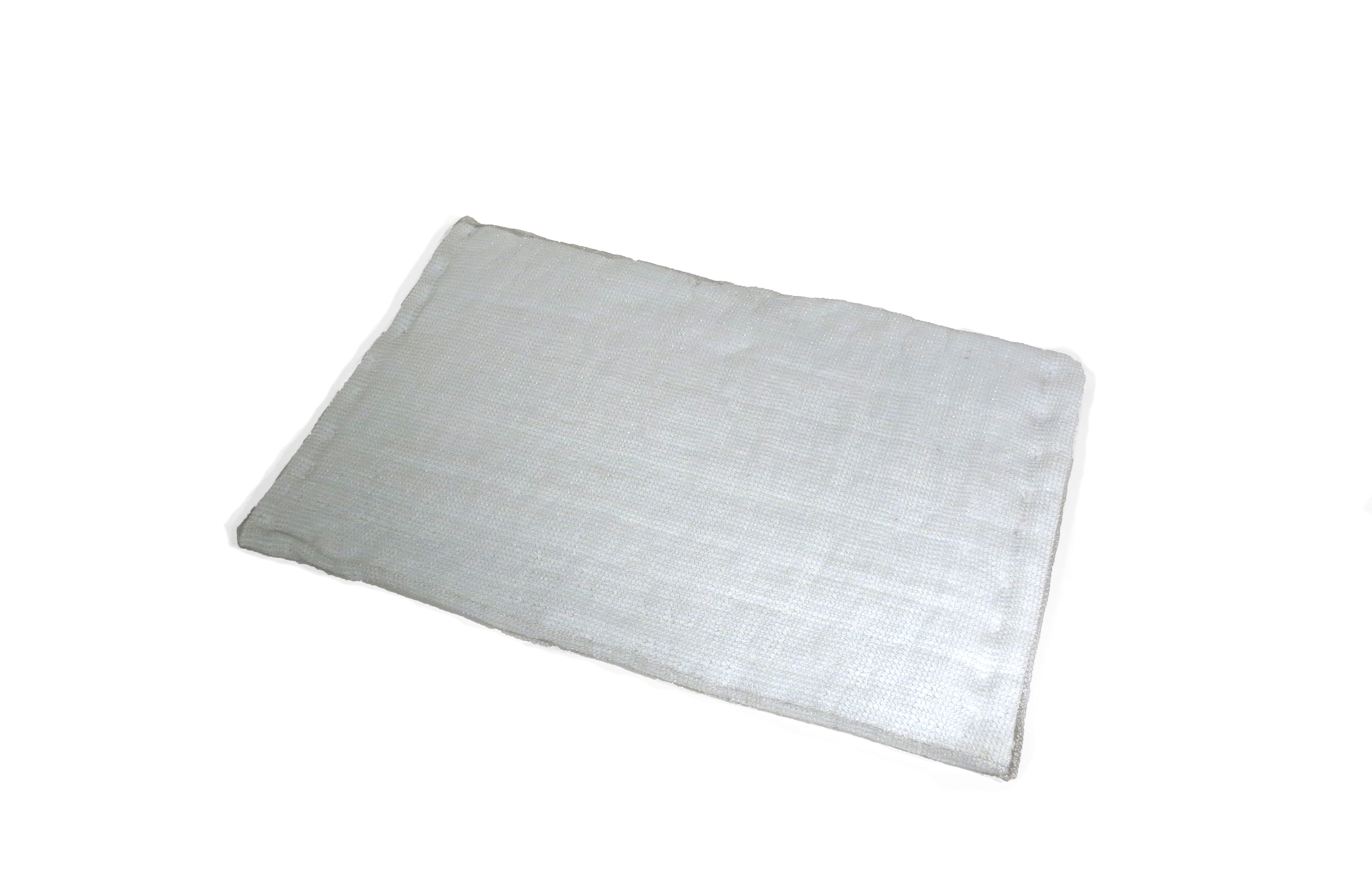

Insulation Blankets are made up of Superwool® Ceramic Fibre Blanket and Stainless Steel Mesh. Available in 9 standard sizes, bespoke sizes are also available upon request.
